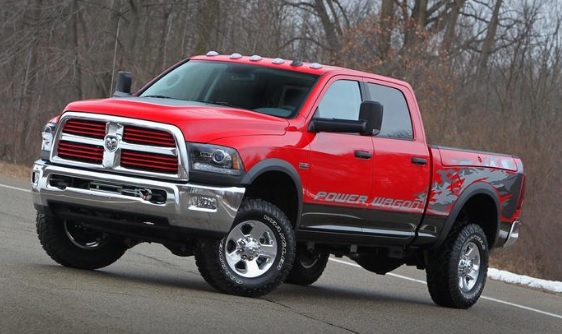

RAM 2500/3500 Crew Cab I (facelift 2013) Power Wagon 6.4 Hemi V8 (410 Hp) 4x4 Automatic 2014

Key specs

Ram 2500/3500 (Pick-up) 2500/3500 Crew Cab I (facelift 2013) 2014,2015,2016,2017,2018

What is the body type, RAM 2500/3500 Crew Cab I (facelift 2013) Power Wagon 6.4 Hemi V8 (410 Hp) 4x4 Automatic 2014?

Pick-up, 4 Doors, 44717 Seats

How much power, RAM 2500/3500 Crew Cab I (facelift 2013) Power Wagon 6.4 Hemi V8 (410 Hp) 4x4 Automatic 2014?

410 Hp @ 5600 rpm.
63.9 Hp/l

What is the engine size, RAM 2500/3500 Crew Cab I (facelift 2013) Power Wagon 6.4 Hemi V8 (410 Hp) 4x4 Automatic 2014?

6417 cm3
391.59 cu. in.

How many cylinders, RAM 2500/3500 Crew Cab I (facelift 2013) Power Wagon 6.4 Hemi V8 (410 Hp) 4x4 Automatic 2014?

8, V-engine

What is the drivetrain, RAM 2500/3500 Crew Cab I (facelift 2013) Power Wagon 6.4 Hemi V8 (410 Hp) 4x4 Automatic 2014?

All wheel drive (4x4),

How long is this vehicle, RAM 2500/3500 Crew Cab I (facelift 2013) Power Wagon 6.4 Hemi V8 (410 Hp) 4x4 Automatic 2014?

6027 mm
237.28 in.

How wide is the vehicle, RAM 2500/3500 Crew Cab I (facelift 2013) Power Wagon 6.4 Hemi V8 (410 Hp) 4x4 Automatic 2014?

#N/D

What is the curb weight, RAM 2500/3500 Crew Cab I (facelift 2013) Power Wagon 6.4 Hemi V8 (410 Hp) 4x4 Automatic 2014?

3039 kg
6699.85 lbs.

Ram 2500/3500 (Pick-up) 2500/3500 Crew Cab I (facelift 2013) 2014,2015,2016,2017,2018 Specs

General information

Brand RAM
Model 2500/3500 (Pick-up)
Version 2500/3500 Crew Cab I (facelift 2013)
Engine version Power Wagon 6.4 Hemi V8 (410 Hp) 4x4 Automatic
Year production start 2014
Year production end 2018
Vehicle type Pick-up
Horsepower RPM 410 Hp @ 5600 rpm.
Curb weight kg -lbs total

3039 kg

6699.85 lbs.
Overall length mm - inch

6027 mm

237.28 in.
Doors 4

Engine specs

Cam configuration OHV
Engine position and orientation Front, Longitudinal
Cylinders 8
Position of cylinders V-engine
Displacement (liters)

6417 cm3

391.59 cu. in.
Eng. horsepower RPM 410 Hp @ 5600 rpm.
Horsepower per litre 63.9 Hp/l
Weight / horsepower kg/hp - hp/tons

7.4 kg/Hp

134.9 Hp/tonne
Weight / torque kg/Nm - Nm/tons 5.2 kg/Nm, 191.5 Nm/tonne

5.2 kg/Nm

191.5 Nm/tonne
Torque Nm RPM lb-ft RPM

582 Nm @ 4000 rpm.

429.26 lb.-ft. @ 4000 rpm.
Bore (mm in)

103.9 mm

4.09 in.
Stroke (mm in)

94.6 mm

3.72 in.
Compression ratio 10
Fuel delivery system Multi-point indirect injection
Fuel type Petrol (Gasoline)
Valvetrain 2
Engine aspiration Naturally aspirated engine
Engine oil liters | quarts

6.6 l

6.97 US qt | 5.81 UK qt
Engine coolant

15.8 l

16.7 US qt | 13.9 UK qt
Powertrain architecture Internal Combustion engine
Engine location Front, Longitudinal

Transmission and Drive system

Drive configuration All wheel drive (4x4)

Brakes

Front brakes Disc
Rear brakes Disc
Anti-lock brake system ABS (Anti-lock braking system)

Steering

Turning diameter m - ft

14.5 m

47.57 ft.

Suspension

Front suspension Multi-link suspension
Rear suspension Multi-link independent

Body / Chassis

Wheels & Tyres

Wheels size 275/70 R18 118T; 285/60 R20 115H
Wheels rims 8J x 18 ET43; 8J x 20 ET55

Exterior

Interior

Safety and Security

Passenger

Passengers seats 44717
Trunk space max liter | cu. Ft.

1628 l

57.49 cu. ft.

Dimensions

Overall length mm - inch

6027 mm

237.28 in.
Overall height mm -inch

2057 mm

80.98 in.
Wheelbase mm - inch

3792 mm

149.29 in.
Track width front mm - inch

1742 mm

68.58 in.
Track width rear mm - inch

1727 mm

67.99 in.

Weights

Curb weight kg -lbs total

3039 kg

6699.85 lbs.
Gross weight kg -lbs total

3860 kg

8509.84 lbs.
Capacities kg - lbs

821 kg

1810 lbs.
Fuel tank liters | gallons

117 l

30.91 US gal | 25.74 UK gal

Fuel economy

Engine type

8 CYLINDER V-Engine
It's an engine with eight cylinder piston where the cylinders share a common crankshaft and are arranged in a V configuration.

What is the 8 cylinder V-engine displacement: it is in a range between 2926 cc and 8135 cc in recent model line up powertrain.

How much is the power of the 8 cylinder V-engine: the power of the 8 cylinder V-engine is in a range from 125 bhp to 1160 bhp.

Which cars use 8 cylinder V-engine: in recent years several manufactures have been used the V8 engine for 3 main applications: premium, sport cars and lightweight trucks. 8 V engine is the American preferred engine for iconic giant pick-up.

What is the eight cylinder V angle: the majority of V8 engines use a V-angle of 90 degrees. This angle results in good engine balance and low vibrations. The downside is a larger powertrain body that makes the use of this configuration suitable only for longitudinal position and rear drive wheels traction.

V8 engines with a 60 degree V-angle were used in the 1996-1999 by Ford and in 2005-2011 by Volvo. The Ford engine used a 60 degree V-angle because it was based on a V6 engine with a 60 degree V-angle. Both the Ford and Volvo engines were used in transverse engine chassis, which were designed for a front-wheel-drive layout. To reduce the vibrations caused by the unbalanced 60 degree V-angle, Volvo's used a balance shaft and offset split crankpins.

The Rolls-Royce Meteorite tank engine also used a 60 degree V-angle, since it was derived from the 60 degree V12 Rolls-Royce Meteor which in turn was based on the famous Rolls-Royce Merlin V12 engine.

Most V8 engines fitted to road cars use a cross-plane crankshaft, since this configuration produces less vibration due to the perfect primary balance and secondary balance.

The rumbling exhaust sound produced by a typical cross-plane V8 engine is partly due to the uneven firing order within each of the two banks of four cylinders and with separate exhaust systems for each bank of cylinders, this uneven pulsing creates the legendary rumbling sound that is typically of V8 engines.

edited by arrabbiata
