Key specs

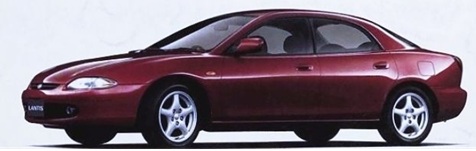

Mazda Lantis (Sedan) Lantis (CBA8P) 1993,1994,1995,1996
What is the body type, Mazda Lantis (CBA8P) 2.0i V6 24V (170 Hp) 1993?
Sedan, 4 Doors, 5 Seats
What is the fuel economy, Mazda Lantis (CBA8P) 2.0i V6 24V (170 Hp) 1993?
12 l/100 km 19.6 US mpg
7.5 l/100 km 31.36 US mpg
How much power, Mazda Lantis (CBA8P) 2.0i V6 24V (170 Hp) 1993?
170 Hp @ 7000 rpm.
85.2 Hp/l
What is the engine size, Mazda Lantis (CBA8P) 2.0i V6 24V (170 Hp) 1993?
1995 cm3
121.74 cu. in.
How many cylinders, Mazda Lantis (CBA8P) 2.0i V6 24V (170 Hp) 1993?
6,
V-engine
What is the drivetrain, Mazda Lantis (CBA8P) 2.0i V6 24V (170 Hp) 1993?
Front wheel drive,
How long is this vehicle, Mazda Lantis (CBA8P) 2.0i V6 24V (170 Hp) 1993?
4490 mm
176.77 in.
How wide is the vehicle, Mazda Lantis (CBA8P) 2.0i V6 24V (170 Hp) 1993?
1695 mm
66.73 in.
What is the curb weight, Mazda Lantis (CBA8P) 2.0i V6 24V (170 Hp) 1993?
1200 kg
2645.55 lbs.
Mazda Lantis (Sedan) Lantis (CBA8P) 1993,1994,1995,1996 Specs
General information
| Brand |
Mazda |
| Model |
Lantis (Sedan) |
| Version |
Lantis (CBA8P) |
| Engine version |
2.0i V6 24V (170 Hp) |
| Year production start |
1993 |
| Year production end |
1996 |
| Vehicle type |
Sedan |
| Horsepower RPM |
170 Hp @ 7000 rpm. |
| Curb weight kg -lbs total |
1200 kg
2645.55 lbs.
|
| Overall length mm - inch |
4490 mm
176.77 in.
|
| Doors |
4 |
Engine specs
| Cam configuration |
DOHC
|
| Engine position and orientation |
Front, Transverse |
| Cylinders |
6 |
| Position of cylinders |
V-engine |
| Displacement (liters) |
1995 cm3
121.74 cu. in.
|
| Eng. horsepower RPM |
170 Hp @ 7000 rpm.
|
| Horsepower per litre |
85.2 Hp/l
|
| Weight / horsepower kg/hp - hp/tons |
7.1 kg/Hp
141.7 Hp/tonne
|
| Weight / torque kg/Nm - Nm/tons |
6.7 kg/Nm, 150 Nm/tonne
6.7 kg/Nm
150 Nm/tonne
|
| Torque Nm RPM lb-ft RPM |
180 Nm @ 5500 rpm.
132.76 lb.-ft. @ 5500 rpm.
|
| Bore (mm in) |
78 mm
3.07 in.
|
| Stroke (mm in) |
69.6 mm
2.74 in.
|
| Compression ratio |
10 |
| Fuel delivery system |
Multi-point indirect injection |
| Fuel type |
Petrol (Gasoline) |
| Valvetrain |
4 |
| Engine aspiration |
Naturally aspirated engine |
| Powertrain architecture |
Internal Combustion engine |
| Engine location |
Front, Transverse
|
Transmission and Drive system
| Drive configuration |
Front wheel drive
|
| Transmission |
5 |
Brakes
| Front brakes |
Ventilated discs |
| Rear brakes |
Disc |
| Anti-lock brake system |
ABS (Anti-lock braking system) |
Steering
| Steering type |
Steering rack and pinion |
Suspension
| Front suspension |
Wishbone |
| Rear suspension |
Helical spring |
Wheels & Tyres
| Wheels size |
205/50 R16 87 V
|
| Wheels rims |
6.5J x 16 ET 45 |
Dimensions
| Overall length mm - inch |
4490 mm
176.77 in.
|
| Overall width mm -inch |
1695 mm
66.73 in.
|
| Overall height mm -inch |
1355 mm
53.35 in.
|
| Wheelbase mm - inch |
2605 mm
102.56 in.
|
| Track width front mm - inch |
1465 mm
57.68 in.
|
| Track width rear mm - inch |
1465 mm
57.68 in.
|
Weights
| Curb weight kg -lbs total |
1200 kg
2645.55 lbs.
|
| Fuel tank liters | gallons |
55 l
14.53 US gal | 12.1 UK gal
|
Fuel economy
| City l/100km - mpg |
12 l/100 km
19.6 US mpg
|
| Highway l/100 km - mpg |
7.5 l/100 km
31.36 US mpg
|
Engine type
6 CYLINDER V-Engine
