Key specs

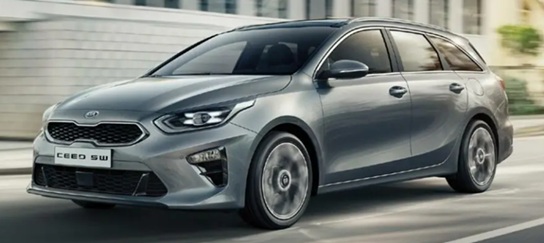

KIA Cee'd (Station wagon (estate)) Ceed III Sportswagon (facelift 2021) 2021,2022,2023,2024
What is the body type, Kia Ceed III Sportswagon (facelift 2021) 1.6 GDI (141 Hp) Plug-in Hybrid DCT 2021?
Station wagon (estate), 5 Doors, 5 Seats
How much power, Kia Ceed III Sportswagon (facelift 2021) 1.6 GDI (141 Hp) Plug-in Hybrid DCT 2021?
105 Hp @ 5700 rpm.
66.5 Hp/l
How fast is the car, Kia Ceed III Sportswagon (facelift 2021) 1.6 GDI (141 Hp) Plug-in Hybrid DCT 2021?
200 km/h 124.27 mph
What is the engine size, Kia Ceed III Sportswagon (facelift 2021) 1.6 GDI (141 Hp) Plug-in Hybrid DCT 2021?
1580 cm3
96.42 cu. in.
How many cylinders, Kia Ceed III Sportswagon (facelift 2021) 1.6 GDI (141 Hp) Plug-in Hybrid DCT 2021?
4,
Inline
What is the drivetrain, Kia Ceed III Sportswagon (facelift 2021) 1.6 GDI (141 Hp) Plug-in Hybrid DCT 2021?
Front wheel drive,
How long is this vehicle, Kia Ceed III Sportswagon (facelift 2021) 1.6 GDI (141 Hp) Plug-in Hybrid DCT 2021?
4605 mm
181.3 in.
How wide is the vehicle, Kia Ceed III Sportswagon (facelift 2021) 1.6 GDI (141 Hp) Plug-in Hybrid DCT 2021?
1800 mm
70.87 in.
What is the curb weight, Kia Ceed III Sportswagon (facelift 2021) 1.6 GDI (141 Hp) Plug-in Hybrid DCT 2021?
1458-1526 kg
3214.34 - 3364.25 lbs.
KIA Cee'd (Station wagon (estate)) Ceed III Sportswagon (facelift 2021) 2021,2022,2023,2024 Specs
General information
| Brand |
Kia |
| Model |
Cee'd (Station wagon (estate)) |
| Version |
Ceed III Sportswagon (facelift 2021) |
| Engine version |
1.6 GDI (141 Hp) Plug-in Hybrid DCT |
| Year production start |
2021 |
| Vehicle type |
Station wagon (estate) |
| Horsepower RPM |
105 Hp @ 5700 rpm. |
| Acceleration 0 - 100 kmh sec |
10.8 sec |
| Curb weight kg -lbs total |
1458-1526 kg
3214.34 - 3364.25 lbs.
|
| Doors |
5 |
| Top Speed |
200 km/h 124.27 mph |
Engine specs
| Designation model |
G4LE |
| Cam configuration |
DOHC, Dual CVVT
|
| Engine position and orientation |
Front, Transverse |
| Cylinders |
4 |
| Position of cylinders |
Inline |
| Displacement (liters) |
1580 cm3
96.42 cu. in.
|
| Eng. horsepower RPM |
105 Hp @ 5700 rpm.
|
| Horsepower per litre |
66.5 Hp/l
|
| Weight / horsepower kg/hp - hp/tons |
10.3 kg/Hp
96.7 Hp/tonne
|
| Weight / torque kg/Nm - Nm/tons |
5.5 kg/Nm, 181.8 Nm/tonne
5.5 kg/Nm
181.8 Nm/tonne
|
| Torque Nm RPM lb-ft RPM |
147 Nm @ 4000 rpm.
108.42 lb.-ft. @ 4000 rpm.
|
| Bore (mm in) |
72 mm
2.83 in.
|
| Stroke (mm in) |
97 mm
3.82 in.
|
| Compression ratio |
13 |
| Fuel delivery system |
Direct injection |
| Fuel type |
petrol / electricity |
| Valvetrain |
4 |
| Engine aspiration |
Naturally aspirated engine |
| Engine oil liters | quarts |
3.8 l
4.02 US qt | 3.34 UK qt
|
| Emission certification |
Euro 6d
|
| Powertrain architecture |
PHEV (Plug-in Hybrid Electric Vehicle) |
| Electric motor power |
60 Hp @ 1798-2500 rpm.
|
| Electric motor torque |
170 Nm @ 0-1798 rpm. 125.39 lb.-ft. @ 0-1798 rpm.
|
| Engine location |
Front, Transverse
|
| Total available power |
141 Hp @ 5700 rpm.
|
| Totale available torque |
265 Nm @ 1000-2400 rpm. 195.45 lb.-ft. @ 1000-2400 rpm.
|
Transmission and Drive system
| Drive configuration |
Front wheel drive
|
Brakes
| Front brakes |
Ventilated discs, 305x25 mm |
| Rear brakes |
Disc, 284x10 mm |
| Anti-lock brake system |
ABS (Anti-lock braking system) |
Steering
| Steering type |
Steering rack and pinion |
| Turning diameter m - ft |
10.4 m
34.12 ft.
|
Suspension
| Front suspension |
Independent type McPherson |
| Rear suspension |
Independent, spring multi-link with stabilizer |
Wheels & Tyres
| Wheels size |
205/55 R16H; 225/45 R17V
|
| Wheels rims |
6.5J x 16 ET50; 7.0J x 17 ET53 |
Passenger
| Passengers seats |
5 |
| Trunk space min liter | cu. Ft. |
437 l
15.43 cu. ft.
|
| Trunk space max liter | cu. Ft. |
1506 l
53.18 cu. ft.
|
| Roof load load kg lbs |
80 kg
176.37 lbs.
|
Dimensions
| Overall length mm - inch |
4605 mm
181.3 in.
|
| Overall width mm -inch |
1800 mm
70.87 in.
|
| Overall height mm -inch |
1465 mm
57.68 in.
|
| Wheelbase mm - inch |
2650 mm
104.33 in.
|
| Track width front mm - inch |
1559-1565 mm
61.38 - 61.61 in.
|
| Track width rear mm - inch |
1567-1573 mm
61.69 - 61.93 in.
|
Weights
| Curb weight kg -lbs total |
1458-1526 kg
3214.34 - 3364.25 lbs.
|
| Gross weight kg -lbs total |
2030 kg
4475.38 lbs.
|
| Capacities kg - lbs |
504-572 kg
1111.13 - 1261.04 lbs.
|
| Fuel tank liters | gallons |
37 l
9.77 US gal | 8.14 UK gal
|
Fuel economy
| Combined fuel consumption (WLTP) |
1.3-1.4 l/100 km 180.93 - 168.01 US mpg |
Engine type
4 CYLINDER INLINE
