SUV, 5 Doors, 5 Seats
265 Hp
190 km/h 118.06 mph
1598 cm3
97.52 cu. in.
4, Inline
All wheel drive (4x4),
4500 mm
177.17 in.
1865 mm
73.43 in.
1818-1924 kg
4008 - 4241.69 lbs.

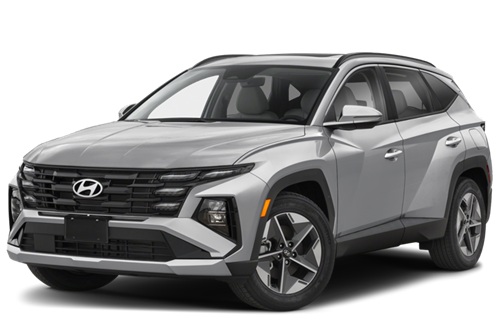

| Brand | Hyundai |
|---|---|
| Model | Tucson (SUV) |
| Version | Tucson IV |
| Engine version | 1.6 T-GDi (265 Hp) Plug-in Hybrid 4WD Automatic |
| Year production start | 2021 |
| Vehicle type | SUV |
| Horsepower RPM | 265 Hp |
| Acceleration 0 - 100 kmh sec | 8.6 sec |
| Curb weight kg -lbs total |
1818-1924 kg4008 - 4241.69 lbs. |
| Overall length mm - inch |
4500 mm177.17 in. |
| Doors | 5 |
| Top Speed | 190 km/h 118.06 mph |
| Cam configuration | DOHC |
|---|---|
| Engine position and orientation | Electric motor, integrated into transmission |
| Cylinders | 4 |
| Position of cylinders | Inline |
| Displacement (liters) |
1598 cm397.52 cu. in. |
| Eng. horsepower RPM | 265 Hp |
| Weight / horsepower kg/hp - hp/tons |
6.9 kg/Hp145.8 Hp/tonne |
| Weight / torque kg/Nm - Nm/tons | 5.2 kg/Nm, 192.5 Nm/tonne
5.2 kg/Nm192.5 Nm/tonne |
| Bore (mm in) |
75.6 mm2.98 in. |
| Stroke (mm in) |
89 mm3.5 in. |
| Compression ratio | 10.5 |
| Fuel delivery system | Direct injection |
| Fuel type | petrol / electricity |
| Valvetrain | 4 |
| Engine aspiration | Turbocharger |
| Emission certification | Euro 6d |
| Powertrain architecture | PHEV (Plug-in Hybrid Electric Vehicle) |
| Electric motor power | 91 Hp @ 2100-3300 rpm. |
| Electric motor torque | 304 Nm @ 1500-4500 rpm. 224.22 lb.-ft. @ 1500-4500 rpm. |
| Engine location | Electric motor, integrated into transmission |
| Total available power | 265 Hp @ 5500 rpm. |
| Totale available torque | 350 Nm @ 1500-4500 rpm. 258.15 lb.-ft. @ 1500-4500 rpm. |
| Drive configuration | All wheel drive (4x4) |
|---|
| Front brakes | Ventilated discs |
|---|---|
| Rear brakes | Disc |
| Anti-lock brake system | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
|---|---|
| Turning diameter m - ft |
10.9 m35.76 ft. |
| Front suspension | Independent type McPherson |
|---|---|
| Rear suspension | Multi-link independent |
| Wheels size | 235/50 R19 |
|---|---|
| Wheels rims | 7.5J x 19 |
| Passengers seats | 5 |
|---|---|
| Trunk space min liter | cu. Ft. |
558 l19.71 cu. ft. |
| Trunk space max liter | cu. Ft. |
1737 l61.34 cu. ft. |
| Roof load load kg lbs |
100 kg220.46 lbs. |
| Overall length mm - inch |
4500 mm177.17 in. |
|---|---|
| Overall width mm -inch |
1865 mm73.43 in. |
| Overall height mm -inch |
1651-1653 mm65 - 65.08 in. |
| Wheelbase mm - inch |
2680 mm105.51 in. |
| Track width front mm - inch |
1615 mm63.58 in. |
| Track width rear mm - inch |
1622 mm63.86 in. |
| Curb weight kg -lbs total |
1818-1924 kg4008 - 4241.69 lbs. |
|---|---|
| Gross weight kg -lbs total |
2415 kg5324.16 lbs. |
| Capacities kg - lbs |
491-597 kg1082.47 - 1316.16 lbs. |
| Fuel tank liters | gallons |
42 l11.1 US gal | 9.24 UK gal |
