Key specs

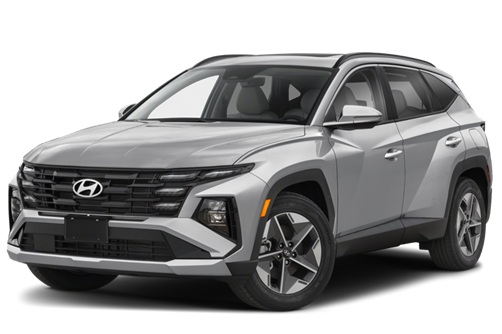

Hyundai Tucson (SUV) Tucson IV 2020,2021,2022,2023,2024
What is the body type, Hyundai Tucson IV 1.6 Smartstream (261 Hp) Plug-in Hybrid HTRAC AWD Automatic 2020?
SUV, 5 Doors, 5 Seats
How much power, Hyundai Tucson IV 1.6 Smartstream (261 Hp) Plug-in Hybrid HTRAC AWD Automatic 2020?
180 Hp @ 5500 rpm.
112.6 Hp/l
What is the engine size, Hyundai Tucson IV 1.6 Smartstream (261 Hp) Plug-in Hybrid HTRAC AWD Automatic 2020?
1598 cm3
97.52 cu. in.
How many cylinders, Hyundai Tucson IV 1.6 Smartstream (261 Hp) Plug-in Hybrid HTRAC AWD Automatic 2020?
4,
Inline
What is the drivetrain, Hyundai Tucson IV 1.6 Smartstream (261 Hp) Plug-in Hybrid HTRAC AWD Automatic 2020?
All wheel drive (4x4),
How long is this vehicle, Hyundai Tucson IV 1.6 Smartstream (261 Hp) Plug-in Hybrid HTRAC AWD Automatic 2020?
4630 mm
182.28 in.
How wide is the vehicle, Hyundai Tucson IV 1.6 Smartstream (261 Hp) Plug-in Hybrid HTRAC AWD Automatic 2020?
1864 mm
73.39 in.
What is the curb weight, Hyundai Tucson IV 1.6 Smartstream (261 Hp) Plug-in Hybrid HTRAC AWD Automatic 2020?
#N/D
Hyundai Tucson (SUV) Tucson IV 2020,2021,2022,2023,2024 Specs
General information
| Brand |
Hyundai |
| Model |
Tucson (SUV) |
| Version |
Tucson IV |
| Engine version |
1.6 Smartstream (261 Hp) Plug-in Hybrid HTRAC AWD Automatic |
| Year production start |
2020 |
| Vehicle type |
SUV |
| Horsepower RPM |
180 Hp @ 5500 rpm. |
| Overall length mm - inch |
4630 mm
182.28 in.
|
| Doors |
5 |
Engine specs
| Cam configuration |
DOHC, CVVD
|
| Engine position and orientation |
Front, Transverse |
| Cylinders |
4 |
| Position of cylinders |
Inline |
| Displacement (liters) |
1598 cm3
97.52 cu. in.
|
| Eng. horsepower RPM |
180 Hp @ 5500 rpm.
|
| Horsepower per litre |
112.6 Hp/l
|
| Torque Nm RPM lb-ft RPM |
264 Nm @ 1500-4500 rpm.
194.72 lb.-ft. @ 1500-4500 rpm.
|
| Bore (mm in) |
75.59 mm
2.98 in.
|
| Stroke (mm in) |
89 mm
3.5 in.
|
| Compression ratio |
10.5 |
| Fuel delivery system |
Direct injection |
| Fuel type |
petrol / electricity |
| Valvetrain |
4 |
| Engine aspiration |
Turbocharger |
| Engine oil liters | quarts |
4.8 l
5.07 US qt | 4.22 UK qt
|
| Powertrain architecture |
PHEV (Plug-in Hybrid Electric Vehicle) |
| Electric motor power |
91 Hp @ 2100-3300 rpm.
|
| Electric motor torque |
304 Nm @ 2100 rpm. 224.22 lb.-ft. @ 2100 rpm.
|
| Engine location |
Front, Transverse
|
| Total available power |
261 Hp
|
Transmission and Drive system
| Drive configuration |
All wheel drive (4x4)
|
Brakes
| Front brakes |
Ventilated discs, 325 mm |
| Rear brakes |
Disc, 300 mm |
| Anti-lock brake system |
ABS (Anti-lock braking system) |
Steering
| Steering type |
Steering rack and pinion |
Suspension
| Front suspension |
Independent, Spring McPherson, with stabilizer |
| Rear suspension |
Independent, spring multi-link with stabilizer |
Passenger
| Passengers seats |
5 |
| Trunk space min liter | cu. Ft. |
903 l
31.89 cu. ft.
|
| Trunk space max liter | cu. Ft. |
1846 l
65.19 cu. ft.
|
| Roof load load kg lbs |
100 kg
220.46 lbs.
|
Dimensions
| Overall length mm - inch |
4630 mm
182.28 in.
|
| Overall width mm -inch |
1864 mm
73.39 in.
|
| Overall height mm -inch |
1666 mm
65.59 in.
|
| Wheelbase mm - inch |
2756 mm
108.5 in.
|
| Track width front mm - inch |
1615-1621 mm
63.58 - 63.82 in.
|
| Track width rear mm - inch |
1623-1628 mm
63.9 - 64.09 in.
|
| Coefficient of drag |
0.33
|
Weights
| Fuel tank liters | gallons |
42 l
11.1 US gal | 9.24 UK gal
|
Engine type
4 CYLINDER INLINE
