Off-road vehicle, 5 Doors, 5 Seats
8.7 l/100 km 27.04 US mpg
11.5 l/100 km 20.45 US mpg
7.5 l/100 km 31.36 US mpg
163 Hp @ 2800 rpm.
56.2 Hp/l
172 km/h 106.88 mph
2902 cm3
177.09 cu. in.
4, Inline
All wheel drive (4x4),
4710 mm
185.43 in.
1860 mm
73.23 in.
2065 kg
4552.55 lbs.
| Brand | Hyundai |
|---|---|

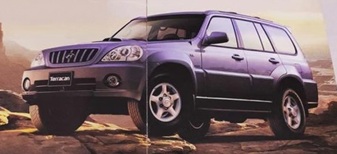

| Model | Terracan (Off-road vehicle) |
| Version | Terracan |
| Engine version | 2.9 CRDi (163 Hp) Automatic |
| Year production start | 2004 |
| Year production end | 2006 |
| Vehicle type | Off-road vehicle |
| Horsepower RPM | 163 Hp @ 2800 rpm. |
| Acceleration 0 - 100 kmh sec | 13.4 sec |
| Curb weight kg -lbs total |
2065 kg4552.55 lbs. |
| Overall length mm - inch |
4710 mm185.43 in. |
| Doors | 5 |
| Top Speed | 172 km/h 106.88 mph |
| Engine position and orientation | Front, Longitudinal |
|---|---|
| Cylinders | 4 |
| Position of cylinders | Inline |
| Displacement (liters) |
2902 cm3177.09 cu. in. |
| Eng. horsepower RPM | 163 Hp @ 2800 rpm. |
| Horsepower per litre | 56.2 Hp/l |
| Weight / horsepower kg/hp - hp/tons |
12.7 kg/Hp78.9 Hp/tonne |
| Weight / torque kg/Nm - Nm/tons | 6 kg/Nm, 167.1 Nm/tonne
6 kg/Nm167.1 Nm/tonne |
| Torque Nm RPM lb-ft RPM |
345 Nm @ 1750 rpm.254.46 lb.-ft. @ 1750 rpm. |
| Bore (mm in) |
97.1 mm3.82 in. |
| Stroke (mm in) |
98 mm3.86 in. |
| Compression ratio | 19.4 |
| Fuel delivery system | Diesel Commonrail |
| Fuel type | Diesel |
| Valvetrain | 4 |
| Engine aspiration | Turbocharger |
| Powertrain architecture | Internal Combustion engine |
| Engine location | Front, Longitudinal |
| Drive configuration | All wheel drive (4x4) |
|---|
| Front brakes | Ventilated discs |
|---|---|
| Rear brakes | Disc |
| Anti-lock brake system | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
|---|
| Front suspension | Double wishbone |
|---|---|
| Rear suspension | Helical spring |
| Wheels size | 255/65 R16 |
|---|---|
| Wheels rims | 16 |
| Passengers seats | 5 |
|---|---|
| Trunk space min liter | cu. Ft. |
1170 l41.32 cu. ft. |
| Trunk space max liter | cu. Ft. |
1955 l69.04 cu. ft. |
| Overall length mm - inch |
4710 mm185.43 in. |
|---|---|
| Overall width mm -inch |
1860 mm73.23 in. |
| Overall height mm -inch |
1790 mm70.47 in. |
| Wheelbase mm - inch |
2750 mm108.27 in. |
| Track width front mm - inch |
1500 mm59.06 in. |
| Track width rear mm - inch |
1500 mm59.06 in. |
| Curb weight kg -lbs total |
2065 kg4552.55 lbs. |
|---|---|
| Gross weight kg -lbs total |
2620 kg5776.11 lbs. |
| Capacities kg - lbs |
555 kg1223.57 lbs. |
| Fuel tank liters | gallons |
75 l19.81 US gal | 16.5 UK gal |
| City l/100km - mpg |
11.5 l/100 km20.45 US mpg |
|---|---|
| Highway l/100 km - mpg |
7.5 l/100 km31.36 US mpg |
| Combined l/100 km - Mpg |
8.7 l/100 km27.04 US mpg |
| Autonomy km (combined use) | 862 |
