Key specs

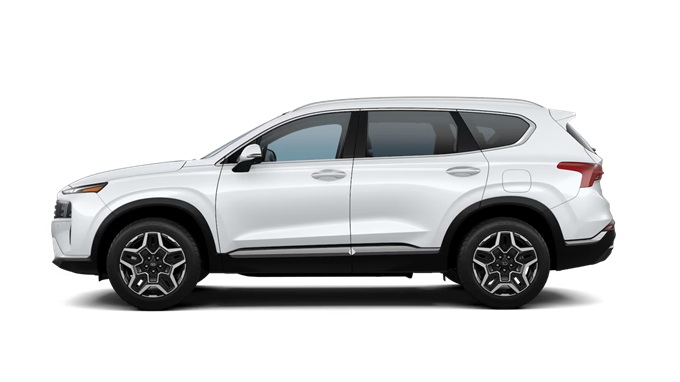

Hyundai Santa Fe (SUV) Santa Fe IV (facelift 2020) 2020,2021,2022,2023,2024
What is the body type, Hyundai Santa Fe IV (facelift 2020) 2.5 Smartstream (277 Hp) HTRAC AWD DCT 2020?
SUV, 5 Doors, 5 Seats
What is the fuel economy, Hyundai Santa Fe IV (facelift 2020) 2.5 Smartstream (277 Hp) HTRAC AWD DCT 2020?
9.8 l/100 km 24 US mpg
How much power, Hyundai Santa Fe IV (facelift 2020) 2.5 Smartstream (277 Hp) HTRAC AWD DCT 2020?
277 Hp @ 6000 rpm.
110.9 Hp/l
What is the engine size, Hyundai Santa Fe IV (facelift 2020) 2.5 Smartstream (277 Hp) HTRAC AWD DCT 2020?
2497 cm3
152.38 cu. in.
How many cylinders, Hyundai Santa Fe IV (facelift 2020) 2.5 Smartstream (277 Hp) HTRAC AWD DCT 2020?
4,
Inline
What is the drivetrain, Hyundai Santa Fe IV (facelift 2020) 2.5 Smartstream (277 Hp) HTRAC AWD DCT 2020?
All wheel drive (4x4),
How long is this vehicle, Hyundai Santa Fe IV (facelift 2020) 2.5 Smartstream (277 Hp) HTRAC AWD DCT 2020?
4785 mm
188.39 in.
How wide is the vehicle, Hyundai Santa Fe IV (facelift 2020) 2.5 Smartstream (277 Hp) HTRAC AWD DCT 2020?
1900 mm
74.8 in.
What is the curb weight, Hyundai Santa Fe IV (facelift 2020) 2.5 Smartstream (277 Hp) HTRAC AWD DCT 2020?
#N/D
Hyundai Santa Fe (SUV) Santa Fe IV (facelift 2020) 2020,2021,2022,2023,2024 Specs
General information
| Brand |
Hyundai |
| Model |
Santa Fe (SUV) |
| Version |
Santa Fe IV (facelift 2020) |
| Engine version |
2.5 Smartstream (277 Hp) HTRAC AWD DCT |
| Year production start |
2020 |
| Vehicle type |
SUV |
| Horsepower RPM |
277 Hp @ 6000 rpm. |
| Overall length mm - inch |
4785 mm
188.39 in.
|
| Doors |
5 |
Engine specs
| Cam configuration |
DOHC
|
| Engine position and orientation |
Front, Transverse |
| Cylinders |
4 |
| Position of cylinders |
Inline |
| Displacement (liters) |
2497 cm3
152.38 cu. in.
|
| Eng. horsepower RPM |
277 Hp @ 6000 rpm.
|
| Horsepower per litre |
110.9 Hp/l
|
| Torque Nm RPM lb-ft RPM |
422 Nm @ 3500 rpm.
311.25 lb.-ft. @ 3500 rpm.
|
| Compression ratio |
10 |
| Fuel delivery system |
Direct injection / Multi-point indirect injection |
| Fuel type |
Petrol (Gasoline) |
| Valvetrain |
4 |
| Engine aspiration |
Turbocharger |
| Emission certification |
ULEV70
|
| Powertrain architecture |
Internal Combustion engine |
| Engine location |
Front, Transverse
|
Transmission and Drive system
| Drive configuration |
All wheel drive (4x4)
|
Brakes
| Front brakes |
Ventilated discs, 345.44 mm |
| Rear brakes |
Disc, 304.8 mm |
| Anti-lock brake system |
ABS (Anti-lock braking system) |
Steering
| Steering type |
Steering rack and pinion |
| Turning diameter m - ft |
11.4 m
37.4 ft.
|
Suspension
| Front suspension |
Independent, Spring McPherson, with stabilizer |
| Rear suspension |
Independent, spring multi-link with stabilizer |
Wheels & Tyres
| Wheels size |
235/55 R19; 255/45 R20
|
| Wheels rims |
7.5J x 19; 8J x 20 |
Passenger
| Passengers seats |
5 |
| Trunk space min liter | cu. Ft. |
1031 l
36.41 cu. ft.
|
| Trunk space max liter | cu. Ft. |
2042 l
72.11 cu. ft.
|
| Roof load load kg lbs |
100 kg
220.46 lbs.
|
Dimensions
| Overall length mm - inch |
4785 mm
188.39 in.
|
| Overall width mm -inch |
1900 mm
74.8 in.
|
| Overall height mm -inch |
1709 mm
67.28 in.
|
| Wheelbase mm - inch |
2766 mm
108.9 in.
|
| Track width front mm - inch |
1638-1646 mm
64.49 - 64.8 in.
|
| Track width rear mm - inch |
1646-1656 mm
64.8 - 65.2 in.
|
| Coefficient of drag |
0.34
|
Weights
| Fuel tank liters | gallons |
71 l
18.76 US gal | 15.62 UK gal
|
Fuel economy
| Combined l/100 km - Mpg |
9.8 l/100 km
24 US mpg
|
| Autonomy km (combined use) |
724 |
Engine type
4 CYLINDER INLINE
