Station wagon (estate), 5 Doors, 5 Seats
6.7 l/100 km 35.11 US mpg
8 l/100 km 29.4 US mpg
5.9 l/100 km 39.87 US mpg
135 Hp @ 6300 rpm.
84.9 Hp/l
195 km/h 121.17 mph
1591 cm3
97.09 cu. in.
4, Inline
Front wheel drive,
4775 mm
187.99 in.
1815 mm
71.46 in.
1428-1532 kg
3148.2 - 3377.48 lbs.

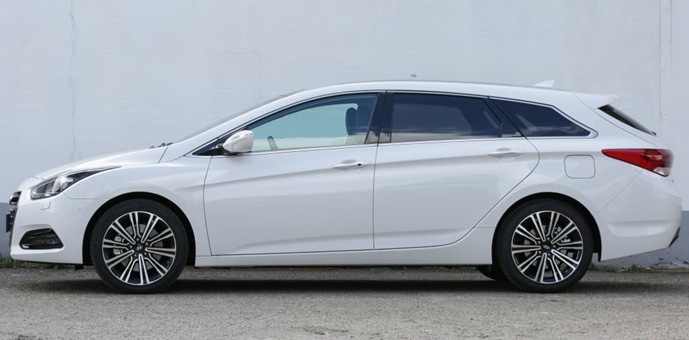

| Brand | Hyundai |
|---|---|
| Model | i40 (Station wagon (estate)) |
| Version | i40 Combi (facelift 2018) |
| Engine version | 1.6 GDI (135 Hp) |
| Year production start | 2018 |
| Vehicle type | Station wagon (estate) |
| Horsepower RPM | 135 Hp @ 6300 rpm. |
| Acceleration 0 - 100 kmh sec | 11.6 sec |
| Curb weight kg -lbs total |
1428-1532 kg3148.2 - 3377.48 lbs. |
| Overall length mm - inch |
4775 mm187.99 in. |
| Doors | 5 |
| Top Speed | 195 km/h 121.17 mph |
| Cam configuration | DOHC, D-CVVT |
|---|---|
| Engine position and orientation | Front, Transverse |
| Cylinders | 4 |
| Position of cylinders | Inline |
| Displacement (liters) |
1591 cm397.09 cu. in. |
| Eng. horsepower RPM | 135 Hp @ 6300 rpm. |
| Horsepower per litre | 84.9 Hp/l |
| Weight / horsepower kg/hp - hp/tons |
10.6 kg/Hp94.5 Hp/tonne |
| Weight / torque kg/Nm - Nm/tons | 8.7 kg/Nm, 114.8 Nm/tonne
8.7 kg/Nm114.8 Nm/tonne |
| Torque Nm RPM lb-ft RPM |
164 Nm @ 4850 rpm.120.96 lb.-ft. @ 4850 rpm. |
| Bore (mm in) |
77 mm3.03 in. |
| Stroke (mm in) |
85.4 mm3.36 in. |
| Compression ratio | 11 |
| Fuel delivery system | Direct injection |
| Fuel type | Petrol (Gasoline) |
| Valvetrain | 4 |
| Engine aspiration | Naturally aspirated engine |
| Engine oil liters | quarts |
3.3 l3.49 US qt | 2.9 UK qt |
| Engine coolant |
6.8 l7.19 US qt | 5.98 UK qt |
| Emission certification | Euro 6d |
| Powertrain architecture | Internal Combustion engine |
| Engine location | Front, Transverse |
| Drive configuration | Front wheel drive |
|---|---|
| Transmission | 6 |
| Front brakes | Ventilated discs |
|---|---|
| Rear brakes | Disc |
| Anti-lock brake system | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
|---|---|
| Turning diameter m - ft |
10.9 m35.76 ft. |
| Front suspension | Independent, Spring McPherson, with stabilizer |
|---|---|
| Rear suspension | Independent, spring multi-link with stabilizer |
| Wheels size | 205/60 R16; 215/50 R17; 225/45 R18 |
|---|---|
| Wheels rims | 7.0J x 16; 7.5J x 17; 8.0J x 18 |
| Passengers seats | 5 |
|---|---|
| Trunk space min liter | cu. Ft. |
553 l19.53 cu. ft. |
| Trunk space max liter | cu. Ft. |
1719 l60.71 cu. ft. |
| Roof load load kg lbs |
100 kg220.46 lbs. |
| Overall length mm - inch |
4775 mm187.99 in. |
|---|---|
| Overall width mm -inch |
1815 mm71.46 in. |
| Overall height mm -inch |
1470 mm57.87 in. |
| Wheelbase mm - inch |
2770 mm109.06 in. |
| Track width front mm - inch |
1579-1591 mm62.17 - 62.64 in. |
| Track width rear mm - inch |
1585-1597 mm62.4 - 62.87 in. |
| Coefficient of drag | 0.29 |
| Curb weight kg -lbs total |
1428-1532 kg3148.2 - 3377.48 lbs. |
|---|---|
| Gross weight kg -lbs total |
2030 kg4475.38 lbs. |
| Capacities kg - lbs |
498-602 kg1097.9 - 1327.18 lbs. |
| Fuel tank liters | gallons |
70 l18.49 US gal | 15.4 UK gal |
| City l/100km - mpg |
8 l/100 km29.4 US mpg |
|---|---|
| Highway l/100 km - mpg |
5.9 l/100 km39.87 US mpg |
| Combined l/100 km - Mpg |
6.7 l/100 km35.11 US mpg |
| Autonomy km (combined use) | 1045 |
