Key specs

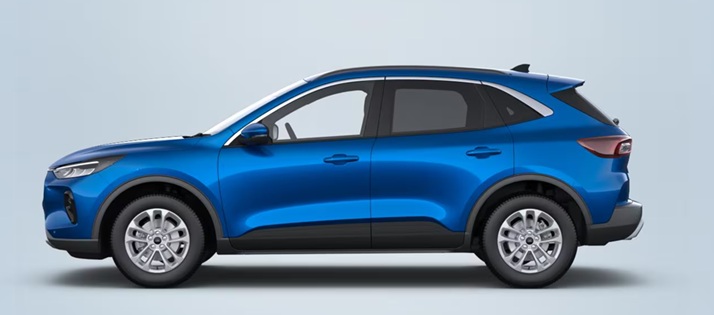

Ford Kuga (SUV) Kuga III 2020,2021,2022,2023,2024
What is the body type, Ford Kuga III 2.5 Duratec (190 Hp) AWD FHEV CVT 2020?
SUV, 5 Doors, 5 Seats
How much power, Ford Kuga III 2.5 Duratec (190 Hp) AWD FHEV CVT 2020?
152 Hp
61.1 Hp/l
How fast is the car, Ford Kuga III 2.5 Duratec (190 Hp) AWD FHEV CVT 2020?
196 km/h 121.79 mph
What is the engine size, Ford Kuga III 2.5 Duratec (190 Hp) AWD FHEV CVT 2020?
2488 cm3
151.83 cu. in.
How many cylinders, Ford Kuga III 2.5 Duratec (190 Hp) AWD FHEV CVT 2020?
4,
Inline
What is the drivetrain, Ford Kuga III 2.5 Duratec (190 Hp) AWD FHEV CVT 2020?
All wheel drive (4x4),
How long is this vehicle, Ford Kuga III 2.5 Duratec (190 Hp) AWD FHEV CVT 2020?
4614 mm
181.65 in.
How wide is the vehicle, Ford Kuga III 2.5 Duratec (190 Hp) AWD FHEV CVT 2020?
1883 mm
74.13 in.
What is the curb weight, Ford Kuga III 2.5 Duratec (190 Hp) AWD FHEV CVT 2020?
1698 kg
3743.45 lbs.
Ford Kuga (SUV) Kuga III 2020,2021,2022,2023,2024 Specs
General information
| Brand |
Ford |
| Model |
Kuga (SUV) |
| Version |
Kuga III |
| Engine version |
2.5 Duratec (190 Hp) AWD FHEV CVT |
| Year production start |
2020 |
| Vehicle type |
SUV |
| Horsepower RPM |
152 Hp |
| Acceleration 0 - 100 kmh sec |
9.5 sec |
| Curb weight kg -lbs total |
1698 kg
3743.45 lbs.
|
| Overall length mm - inch |
4614 mm
181.65 in.
|
| Doors |
5 |
| Top Speed |
196 km/h 121.79 mph |
Engine specs
| Cam configuration |
DOHC
|
| Engine position and orientation |
Front, Transverse |
| Cylinders |
4 |
| Position of cylinders |
Inline |
| Displacement (liters) |
2488 cm3
151.83 cu. in.
|
| Eng. horsepower RPM |
152 Hp
|
| Horsepower per litre |
61.1 Hp/l
|
| Weight / horsepower kg/hp - hp/tons |
8.9 kg/Hp
111.9 Hp/tonne
|
| Weight / torque kg/Nm - Nm/tons |
8.5 kg/Nm, 117.8 Nm/tonne
8.5 kg/Nm
117.8 Nm/tonne
|
| Torque Nm RPM lb-ft RPM |
200 Nm 147.51 lb.-ft. |
| Bore (mm in) |
89 mm
3.5 in.
|
| Stroke (mm in) |
100 mm
3.94 in.
|
| Fuel type |
petrol / electricity |
| Valvetrain |
4 |
| Emission certification |
Euro 6d-ISC-FCM
|
| Powertrain architecture |
FHEV (Full Hybrid Electric Vehicle) |
| Electric motor power |
125 Hp
|
| Engine location |
Front, Transverse
|
| Total available power |
190 Hp @ 5500 rpm.
|
Transmission and Drive system
| Drive configuration |
All wheel drive (4x4)
|
Brakes
| Front brakes |
Ventilated discs |
| Rear brakes |
Disc |
| Anti-lock brake system |
ABS (Anti-lock braking system) |
Steering
| Steering type |
Steering rack and pinion |
| Turning diameter m - ft |
11.4 m
37.4 ft.
|
Suspension
| Front suspension |
Independent type McPherson, Transverse stabilizer |
| Rear suspension |
Double wishbone, Transverse stabilizer |
Wheels & Tyres
| Wheels size |
225/65 R17
|
| Wheels rims |
7J x 17 |
Passenger
| Passengers seats |
5 |
| Trunk space min liter | cu. Ft. |
405 l
14.3 cu. ft.
|
| Trunk space max liter | cu. Ft. |
1481 l
52.3 cu. ft.
|
| Roof load load kg lbs |
75 kg
165.35 lbs.
|
Dimensions
| Overall length mm - inch |
4614 mm
181.65 in.
|
| Overall width mm -inch |
1883 mm
74.13 in.
|
| Overall height mm -inch |
1658 mm
65.28 in.
|
| Wheelbase mm - inch |
2710 mm
106.69 in.
|
Weights
| Curb weight kg -lbs total |
1698 kg
3743.45 lbs.
|
| Gross weight kg -lbs total |
2280 kg
5026.54 lbs.
|
| Capacities kg - lbs |
582 kg
1283.09 lbs.
|
| Fuel tank liters | gallons |
45 l
11.89 US gal | 9.9 UK gal
|
Fuel economy
| Urban (NEDC) l/100 km - Mpg |
6.4-6.6 l/100 km
36.75 - 35.64 US mpg
|
| Extra urban (NEDC) l/100 km - Mpg |
4.6-4.8 l/100 km
51.13 - 49 US mpg
|
| Combined (NEDC) l/100 km - Mpg |
5.3-5.4 l/100 km
44.38 - 43.56 US mpg
|
| Autonomy km (combined use) NEDC |
849?0566038 |
| Combined fuel consumption (WLTP) |
5.8 l/100 km 40.55 US mpg |
Engine type
4 CYLINDER INLINE
