SUV, 5 Doors, 5 Seats
5.2 l/100 km 45.23 US mpg
6.2 l/100 km 37.94 US mpg
4.6 l/100 km 51.13 US mpg
140 Hp @ 6300 rpm.
140.3 Hp/l
188 km/h 116.82 mph
998 cm3
60.9 cu. in.
3, Inline
Front wheel drive,
4096 mm
161.26 in.
1765 mm
69.49 in.
1205 kg
2656.57 lbs.

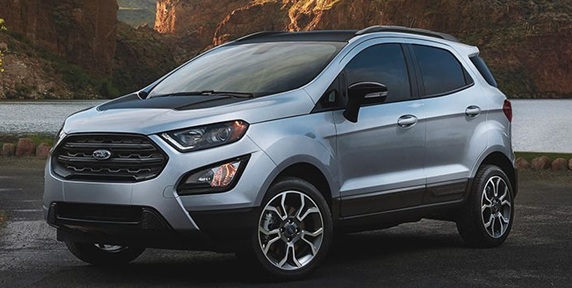

| Brand | Ford |
|---|---|
| Model | EcoSport (SUV) |
| Version | EcoSport II (facelift 2017) |
| Engine version | 1.0 EcoBoost (140 Hp) |
| Year production start | 2017 |
| Year production end | 2022 |
| Vehicle type | SUV |
| Horsepower RPM | 140 Hp @ 6300 rpm. |
| Acceleration 0 - 100 kmh sec | 11.8 sec |
| Curb weight kg -lbs total |
1205 kg2656.57 lbs. |
| Overall length mm - inch |
4096 mm161.26 in. |
| Doors | 5 |
| Top Speed | 188 km/h 116.82 mph |
| Cam configuration | DOHC |
|---|---|
| Engine position and orientation | Front, Transverse |
| Cylinders | 3 |
| Position of cylinders | Inline |
| Displacement (liters) |
998 cm360.9 cu. in. |
| Eng. horsepower RPM | 140 Hp @ 6300 rpm. |
| Horsepower per litre | 140.3 Hp/l |
| Weight / horsepower kg/hp - hp/tons |
8.6 kg/Hp116.2 Hp/tonne |
| Weight / torque kg/Nm - Nm/tons | 6.7 kg/Nm, 149.4 Nm/tonne
6.7 kg/Nm149.4 Nm/tonne |
| Torque Nm RPM lb-ft RPM |
180 Nm @ 1500-5000 rpm.132.76 lb.-ft. @ 1500-5000 rpm. |
| Bore (mm in) |
71.9 mm2.83 in. |
| Stroke (mm in) |
82 mm3.23 in. |
| Compression ratio | 10 |
| Fuel delivery system | Direct injection |
| Fuel type | Petrol (Gasoline) |
| Valvetrain | 4 |
| Engine aspiration | Turbocharger |
| Emission certification | Euro 6 |
| Powertrain architecture | Internal Combustion engine |
| Engine location | Front, Transverse |
| Drive configuration | Front wheel drive |
|---|---|
| Transmission | 6 |
| Front brakes | Ventilated discs |
|---|---|
| Rear brakes | Drum |
| Anti-lock brake system | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
|---|---|
| Turning diameter m - ft |
10.6 m34.78 ft. |
| Front suspension | Independent, Spring McPherson, with stabilizer |
|---|---|
| Rear suspension | Semi-independent, coil spring |
| Wheels size | 205/60 R16; 205/50 R17; 215/45 R18 |
|---|---|
| Wheels rims | 6.5J x 16; 7J x 17; 7J x 18 |
| Passengers seats | 5 |
|---|---|
| Trunk space min liter | cu. Ft. |
310 l10.95 cu. ft. |
| Trunk space max liter | cu. Ft. |
1238 l43.72 cu. ft. |
| Overall length mm - inch |
4096 mm161.26 in. |
|---|---|
| Overall width mm -inch |
1765 mm69.49 in. |
| Overall height mm -inch |
1653 mm65.08 in. |
| Wheelbase mm - inch |
2519 mm99.17 in. |
| Track width front mm - inch |
1530 mm60.24 in. |
| Track width rear mm - inch |
1522 mm59.92 in. |
| Curb weight kg -lbs total |
1205 kg2656.57 lbs. |
|---|---|
| Gross weight kg -lbs total |
1730 kg3814 lbs. |
| Capacities kg - lbs |
525 kg1157.43 lbs. |
| Fuel tank liters | gallons |
52 l13.74 US gal | 11.44 UK gal |
| City l/100km - mpg |
6.2 l/100 km37.94 US mpg |
|---|---|
| Highway l/100 km - mpg |
4.6 l/100 km51.13 US mpg |
| Combined l/100 km - Mpg |
5.2 l/100 km45.23 US mpg |
| Autonomy km (combined use) | 1000 |
3 CYLINDER INLINE
