Coupe, 2 Doors, 2 Seats
860 Hp @ 9200 rpm.
137.3 Hp/l
6262 cm3
382.13 cu. in.
12, V-engine
Rear wheel drive,
#N/D
#N/D
#N/D
| Brand | Ferrari |
|---|---|

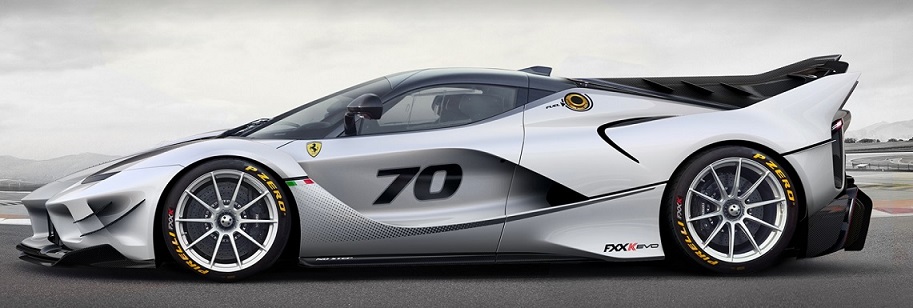

| Model | FXX (Coupe) |
| Version | FXX-K Evo |
| Engine version | 6.3 V12 (1050 Hp) Hybrid DCT |
| Year production start | 2017 |
| Vehicle type | Coupe |
| Horsepower RPM | 860 Hp @ 9200 rpm. |
| Doors | 2 |
| Engine position and orientation | Rear, Longitudinal |
|---|---|
| Cylinders | 12 |
| Position of cylinders | V-engine |
| Displacement (liters) |
6262 cm3382.13 cu. in. |
| Eng. horsepower RPM | 860 Hp @ 9200 rpm. |
| Horsepower per litre | 137.3 Hp/l |
| Torque Nm RPM lb-ft RPM |
750 Nm @ 6500 rpm.553.17 lb.-ft. @ 6500 rpm. |
| Bore (mm in) |
94 mm3.7 in. |
| Stroke (mm in) |
75.2 mm2.96 in. |
| Compression ratio | 13.5 |
| Fuel delivery system | Direct injection |
| Fuel type | Petrol (Gasoline) |
| Valvetrain | 4 |
| Powertrain architecture | MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV) |
| Electric motor power | 190 Hp |
| Engine location | Rear, Longitudinal |
| Total available power | 1050 Hp |
| Totale available torque | 900 Nm 663.81 lb.-ft. |
| Drive configuration | Rear wheel drive |
|---|
| Front brakes | Ventilated discs |
|---|---|
| Rear brakes | Ventilated discs |
| Anti-lock brake system | ABS (Anti-lock braking system) |
| Passengers seats | 2 |
|---|
12 CYLINDER V-Engine
What engine is the 12 cylinder V-engine: a V12 engine is a twelve-cylinder piston engine where two banks of six cylinders are arranged in a V configuration around a common crankshaft.
What is the 12 cylinder V-engine displacement: it is in a range between 3500 cc and 7312 cc in recent model line up powertrain.
How much is the power of the 12 cylinder V-engine: the power of the 12 cylinder v-engine is in a range from 264 bhp to 860 bhp.
Which cars use 12 cylinder V-engine: few automotive manufacturer engineered and built V12 engines.
Ferrari V12 engine powered Testarossa with a DOHC head and 4942 cc displacement and then 456,512,F50,Enzo, all iconic latest models including 812 and Purosangue.
Jaguar V12 engine was an all-aluminium SOHC design with displacements of 5.3-6.0 L (323-366 cu in) that was produced from 1971 to 1997 in the E-Type, XJS and XJ.
BMW production of V12 engines began with the BMW M70 SOHC engine introduced in the 1987 E32 7 Series luxury sedan. It was upgraded to a DOHC V12 engine in 2003, then to a turbocharged DOHC V12 engine which has been in production from 2008 to the present in the 7 Series. BMW V12 engines have also been used in several Rolls-Royce models, beginning in 1998.
Mercedes-Benz first V12 engine was the M120 engine, a 6.0 L (366 cu in) DOHC engine introduced in the 1991 Mercedes-Benz 600 SE luxury sedan. It was replaced by a SOHC V12 engine in 1998 upgraded to turbocharged which has been in production for 2003 to the present. Mercedes-Benz V12 have also been used in several Maybach models, beginning with the Maybach 57-62 in 2002.
Aston Martin the 1999 DB7 V12 Vantage used the first V12 engine, a 5.9 L (362 cu in) DOHC design. Variations of this engine were used in the Vanquish, DB9, DBS V12, Rapide, Virage, and V12 Vantage. This engine was replaced by a turbocharged DOHC V12 engine, which was introduced in the DB11 and has been produced from 2016 to the present.
Audi the 2008-2012 Q7 SUV was powered by 6.0 V12 48v TDI engine, which was the first V12 diesel engine used in a production car.
Toyota V12 engine from 1997-2016 Toyota GZ engine, a 5.0 L (305 cu in) DOHC design which was used in the Toyota Century limousine.
In the United States, no mass-produced V12 engines have been built since the 1940s, with U.S. manufacturers preferring to use large displacement V8 engines instead.
In China, the 2009 Hongqi HQE limousine, powered by a 6.0 L (366 cu in) DOHC V12 engine, is the sole Chinese car to be produced with a V12 engine.
What is the 12 cylinder V-engine angle: V12 engine use a V angle of 60 degrees between the two banks of cylinders. Each bank of a V12 engine essentially functions as a straight-six engine with perfect primary and secondary engine balance and outstanding smoothness: at any given time, three of the cylinders in a V12 engine are in their power stroke, reducing gaps between power pulses.
Racing use of 12 cylinder V-engine: V12 engines are not the choice in last seasons but were often used in the past in Formula One. The first V12 engine used in Formula One was in the 1964 Honda RA271 and in 1966 season V12 engines was the choice with new V12 engines from Ferrari, Maserati, and Weslake. Ferrari's engine debuted in the Ferrari 312 racing car and was used up to the 1975 Ferrari 312B, after which Ferrari switched to a flat-twelve engine.
Few V12 engines were used in the following decades, with the exception of the Alfa Romeo V12 which was first used by the 1979 Brabham BT48 and then by Alfa Romeo until the 1982 Alfa Romeo 182. Latest power train equipment began in 1989, with the introduction of the Ferrari 640 racing car and Ferrari continued to use V12 engines until the 1995 with model 412 T2, the last Formula One using a V12 engine.
The most powerful naturally-aspirated V12 engine used in Formula One was the Tipo 043, used by Ferrari in 1994, which produced 850 hp (634 kW) @ 15,800 rpm.
In prototype sports car racing, Audi in 2006-2008 season used a used a diesel twin-turbo V12 engine and the same did Peugeot in 2007 with the 908 HDi FAP.
