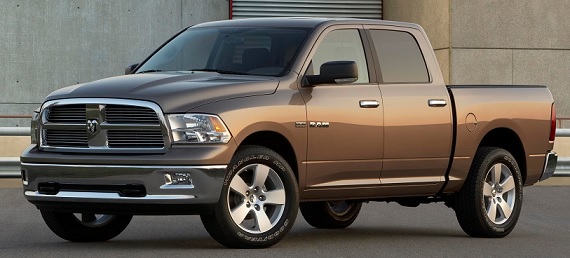

Dodge Ram 1500 IV (DS/DJ) 6.7 TD (350 Hp) 2009

Key specs

Dodge RAM (Pick-up) Ram 1500 IV (DS/DJ) 2009,2010,2011,2012,2013,2014,2015,2016,2017,2018

What is the body type, Dodge Ram 1500 IV (DS/DJ) 6.7 TD (350 Hp) 2009?

Pick-up, 4 Doors, 6 Seats

How much power, Dodge Ram 1500 IV (DS/DJ) 6.7 TD (350 Hp) 2009?

350 Hp @ 3500 rpm.
52.4 Hp/l

What is the engine size, Dodge Ram 1500 IV (DS/DJ) 6.7 TD (350 Hp) 2009?

6685 cm3
407.94 cu. in.

How many cylinders, Dodge Ram 1500 IV (DS/DJ) 6.7 TD (350 Hp) 2009?

6, Inline

What is the drivetrain, Dodge Ram 1500 IV (DS/DJ) 6.7 TD (350 Hp) 2009?

All wheel drive (4x4),

How long is this vehicle, Dodge Ram 1500 IV (DS/DJ) 6.7 TD (350 Hp) 2009?

5784 mm
227.72 in.

How wide is the vehicle, Dodge Ram 1500 IV (DS/DJ) 6.7 TD (350 Hp) 2009?

2019 mm
79.49 in.

What is the curb weight, Dodge Ram 1500 IV (DS/DJ) 6.7 TD (350 Hp) 2009?

#N/D

Dodge RAM (Pick-up) Ram 1500 IV (DS/DJ) 2009,2010,2011,2012,2013,2014,2015,2016,2017,2018 Specs

General information

Brand	Dodge
Model	RAM (Pick-up)
Version	Ram 1500 IV (DS/DJ)
Engine version	6.7 TD (350 Hp)
Year production start	2009
Year production end	2018
Vehicle type	Pick-up
Horsepower RPM	350 Hp @ 3500 rpm.
Overall length mm - inch	5784 mm 227.72 in.
Doors	4

Engine specs

Cam configuration	OHV
Engine position and orientation	Front, Longitudinal
Cylinders	6
Position of cylinders	Inline
Displacement (liters)	6685 cm3 407.94 cu. in.
Eng. horsepower RPM	350 Hp @ 3500 rpm.
Horsepower per litre	52.4 Hp/l
Torque Nm RPM lb-ft RPM	881 Nm @ 1500 rpm. 649.79 lb.-ft. @ 1500 rpm.
Bore (mm in)	106.93 mm 4.21 in.
Stroke (mm in)	123.95 mm 4.88 in.
Compression ratio	17.3
Fuel delivery system	Diesel - Standard diesel injection (SDI)
Fuel type	Diesel
Valvetrain	4
Engine aspiration	Turbocharger
Powertrain architecture	Internal Combustion engine
Engine location	Front, Longitudinal

Transmission and Drive system

Drive configuration	All wheel drive (4x4)

Brakes

Steering

Suspension

Body / Chassis

Wheels & Tyres

Wheels size	235/80 R17

Exterior

Interior

Safety and Security

Passenger

Passengers seats	6

Dimensions

Overall length mm - inch	5784 mm 227.72 in.
Overall width mm -inch	2019 mm 79.49 in.
Overall height mm -inch	1996 mm 78.58 in.
Wheelbase mm - inch	3568 mm 140.47 in.
Track width front mm - inch	1765 mm 69.49 in.
Track width rear mm - inch	1732 mm 68.19 in.

Weights

Fuel tank liters \| gallons	132 l 34.87 US gal \| 29.04 UK gal

Fuel economy

Engine type

6 CYLINDER INLINE
