Station wagon (estate), 5 Doors, 5 Seats
6.1 l/100 km 38.56 US mpg
8.2 l/100 km 28.68 US mpg
4.9 l/100 km 48 US mpg
204 Hp @ 4000 rpm.
93.6 Hp/l
225 km/h 139.81 mph
2179 cm3
132.97 cu. in.
4, Inline
Front wheel drive,
4829 mm
190.12 in.
1860 mm
73.23 in.
1767 kg
3895.57 lbs.
| Brand | Citroen |
|---|---|

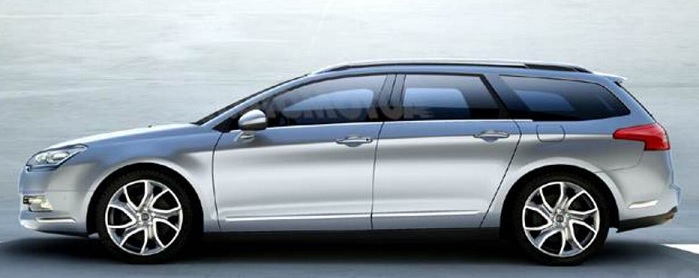

| Model | C5 (Station wagon (estate)) |
| Version | C5 II Tourer (Phase II, 2012) |
| Engine version | 2.2 HDi (204 Hp) FAP Automatic |
| Year production start | 2012 |
| Year production end | 2015 |
| Vehicle type | Station wagon (estate) |
| Horsepower RPM | 204 Hp @ 4000 rpm. |
| Acceleration 0 - 100 kmh sec | 8.6 sec |
| Curb weight kg -lbs total |
1767 kg3895.57 lbs. |
| Overall length mm - inch |
4829 mm190.12 in. |
| Doors | 5 |
| Top Speed | 225 km/h 139.81 mph |
| Cam configuration | DOHC |
|---|---|
| Engine position and orientation | Front, Transverse |
| Cylinders | 4 |
| Position of cylinders | Inline |
| Displacement (liters) |
2179 cm3132.97 cu. in. |
| Eng. horsepower RPM | 204 Hp @ 4000 rpm. |
| Horsepower per litre | 93.6 Hp/l |
| Weight / horsepower kg/hp - hp/tons |
8.7 kg/Hp115.4 Hp/tonne |
| Weight / torque kg/Nm - Nm/tons | 4 kg/Nm, 249 Nm/tonne
4 kg/Nm249 Nm/tonne |
| Torque Nm RPM lb-ft RPM |
440 Nm @ 1900 rpm.324.53 lb.-ft. @ 1900 rpm. |
| Bore (mm in) |
85 mm3.35 in. |
| Stroke (mm in) |
96 mm3.78 in. |
| Compression ratio | 16.6 |
| Fuel delivery system | Diesel Commonrail |
| Fuel type | Diesel |
| Valvetrain | 4 |
| Engine aspiration | Turbocharger, Intercooler |
| Emission certification | Euro 5 |
| Powertrain architecture | Internal Combustion engine |
| Engine location | Front, Transverse |
| Drive configuration | Front wheel drive |
|---|
| Front brakes | Ventilated discs |
|---|---|
| Rear brakes | Ventilated discs |
| Brake control | Disc |
| Anti-lock brake system | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
|---|---|
| Turning diameter m - ft |
11.7 m38.39 ft. |
| Front suspension | Multi-link suspension |
|---|---|
| Rear suspension | Multi-link independent |
| Wheels size | 225/45 R18 |
|---|---|
| Wheels rims | 18 |
| Passengers seats | 5 |
|---|---|
| Trunk space min liter | cu. Ft. |
505 l17.83 cu. ft. |
| Trunk space max liter | cu. Ft. |
1462 l51.63 cu. ft. |
| Roof load load kg lbs |
80 kg176.37 lbs. |
| Overall length mm - inch |
4829 mm190.12 in. |
|---|---|
| Overall width mm -inch |
1860 mm73.23 in. |
| Overall height mm -inch |
1483-1479 mm58.39 - 58.23 in. |
| Wheelbase mm - inch |
2815 mm110.83 in. |
| Track width front mm - inch |
1586 mm62.44 in. |
| Track width rear mm - inch |
1557 mm61.3 in. |
| Curb weight kg -lbs total |
1767 kg3895.57 lbs. |
|---|---|
| Gross weight kg -lbs total |
2367 kg5218.34 lbs. |
| Capacities kg - lbs |
600 kg1322.77 lbs. |
| Fuel tank liters | gallons |
71 l18.76 US gal | 15.62 UK gal |
| City l/100km - mpg |
8.2 l/100 km28.68 US mpg |
|---|---|
| Highway l/100 km - mpg |
4.9 l/100 km48 US mpg |
| Combined l/100 km - Mpg |
6.1 l/100 km38.56 US mpg |
| Autonomy km (combined use) | 1164 |
