Minivan, MPV, 5 Doors, 7 Seats
4.7-4.8 l/100 km 50.05 - 49 US mpg
5.5-5.6 l/100 km 42.77 - 42 US mpg
4.2-4.3 l/100 km 56 - 54.7 US mpg
163 Hp @ 3750 rpm.
81.6 Hp/l
210 km/h 130.49 mph
1997 cm3
121.86 cu. in.
4, Inline
Front wheel drive,
4602 mm
181.18 in.
1826 mm
71.89 in.
1540 kg
3395.12 lbs.
| Brand | Citroen |
|---|---|
| Model | C4 (Minivan, MPV) |

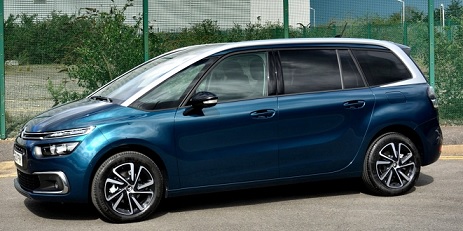

| Version | C4 Grand SpaceTourer (Phase I, 2018) |
| Engine version | 2.0 BlueHDi (163 Hp) Automatic |
| Year production start | 2018 |
| Vehicle type | Minivan, MPV |
| Horsepower RPM | 163 Hp @ 3750 rpm. |
| Acceleration 0 - 100 kmh sec | 9.2 sec |
| Curb weight kg -lbs total |
1540 kg3395.12 lbs. |
| Overall length mm - inch |
4602 mm181.18 in. |
| Doors | 5 |
| Top Speed | 210 km/h 130.49 mph |
| Engine position and orientation | Front, Transverse |
|---|---|
| Cylinders | 4 |
| Position of cylinders | Inline |
| Displacement (liters) |
1997 cm3121.86 cu. in. |
| Eng. horsepower RPM | 163 Hp @ 3750 rpm. |
| Horsepower per litre | 81.6 Hp/l |
| Weight / horsepower kg/hp - hp/tons |
9.4 kg/Hp105.8 Hp/tonne |
| Weight / torque kg/Nm - Nm/tons | 3.9 kg/Nm, 259.7 Nm/tonne
3.9 kg/Nm259.7 Nm/tonne |
| Torque Nm RPM lb-ft RPM |
400 Nm @ 2000 rpm.295.02 lb.-ft. @ 2000 rpm. |
| Fuel delivery system | Diesel Commonrail |
| Fuel type | Diesel |
| Valvetrain | 4 |
| Engine aspiration | Turbocharger, Intercooler |
| Emission certification | Euro 6d-TEMP |
| Powertrain architecture | Internal Combustion engine |
| Engine location | Front, Transverse |
| Drive configuration | Front wheel drive |
|---|
| Front brakes | Ventilated discs |
|---|---|
| Rear brakes | Ventilated discs |
| Brake control | Disc |
| Anti-lock brake system | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
|---|
| Front suspension | Independent, Spring McPherson, with stabilizer |
|---|---|
| Rear suspension | Semi-independent, coil spring |
| Wheels size | 205/60 R16; 205/55 R17; 225/45 R18 |
|---|---|
| Wheels rims | 16; 17; 18 |
| Passengers seats | 7 |
|---|---|
| Trunk space min liter | cu. Ft. |
704 l24.86 cu. ft. |
| Overall length mm - inch |
4602 mm181.18 in. |
|---|---|
| Overall width mm -inch |
1826 mm71.89 in. |
| Overall height mm -inch |
1638-1644 mm64.49 - 64.72 in. |
| Wheelbase mm - inch |
2840 mm111.81 in. |
| Track width front mm - inch |
1573-1587 mm61.93 - 62.48 in. |
| Track width rear mm - inch |
1576-1590 mm62.05 - 62.6 in. |
| Curb weight kg -lbs total |
1540 kg3395.12 lbs. |
|---|---|
| Gross weight kg -lbs total |
2290 kg5048.59 lbs. |
| Capacities kg - lbs |
750 kg1653.47 lbs. |
| Fuel tank liters | gallons |
55 l14.53 US gal | 12.1 UK gal |
| City l/100km - mpg |
5.5-5.6 l/100 km42.77 - 42 US mpg |
|---|---|
| Highway l/100 km - mpg |
4.2-4.3 l/100 km56 - 54.7 US mpg |
| Combined l/100 km - Mpg |
4.7-4.8 l/100 km50.05 - 49 US mpg |
| Autonomy km (combined use) | 1170 |
| Combined fuel consumption (WLTP) | 6.1 l/100 km 38.56 US mpg |
