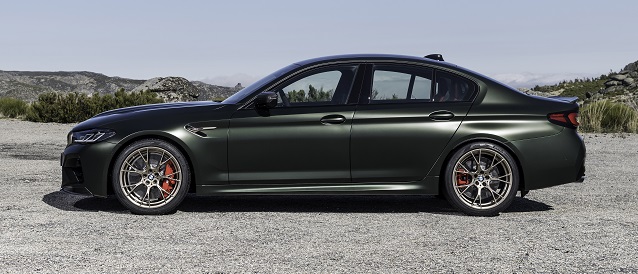

BMW M5 (Sedan) M5 (F90 LCI, facelift 2020) 2021,2022,2023,2024 Specs
General information
Brand
BMW
Model
M5 (Sedan)
Version
M5 (F90 LCI, facelift 2020)
Engine version
CS 4.4 V8 (635 Hp) xDrive Steptronic
Year production start
2021
Vehicle type
Sedan
Horsepower RPM
635 Hp @ 6000 rpm.
Acceleration 0 - 100 kmh sec
3.0 sec
Curb weight kg -lbs total
1825 kg
4023.44 lbs.
Overall length mm - inch
5001 mm
196.89 in.
Doors
4
Top Speed
305 km/h, Electronically limited 189.52 mph
Engine specs
Cam configuration
VALVETRONIC
Engine position and orientation
Front, Longitudinal
Cylinders
8
Position of cylinders
V-engine
Displacement (liters)
4395 cm3
268.2 cu. in.
Eng. horsepower RPM
635 Hp @ 6000 rpm.
Horsepower per litre
144.5 Hp/l
Weight / horsepower kg/hp - hp/tons
2.9 kg/Hp
347.9 Hp/tonne
Weight / torque kg/Nm - Nm/tons
2.4 kg/Nm, 411 Nm/tonne
2.4 kg/Nm
411 Nm/tonne
Torque Nm RPM lb-ft RPM
750 Nm @ 1800-5950 rpm.
553.17 lb.-ft. @ 1800-5950 rpm.
Bore (mm in)
89 mm
3.5 in.
Stroke (mm in)
88.3 mm
3.48 in.
Compression ratio
10
Fuel delivery system
Direct injection
Fuel type
Petrol (Gasoline)
Valvetrain
4
Engine aspiration
Twin-power turbo, Intercooler
Engine oil liters | quarts
10.0 l
10.57 US qt | 8.8 UK qt
Emission certification
Euro 6d
Powertrain architecture
Internal Combustion engine
Engine location
Front, Longitudinal
Transmission and Drive system
Drive configuration
All wheel drive (4x4)
Brakes
Front brakes
Ventilated discs
Rear brakes
Ventilated discs
Brake control
Ventilated discs
Anti-lock brake system
ABS (Anti-lock braking system)
Steering
Steering type
Steering rack and pinion
Turning diameter m - ft
12.6 m
41.34 ft.
Suspension
Front suspension
Double wishbone
Rear suspension
Multi-link independent
Body / Chassis
Wheels & Tyres
Wheels size
Front wheel tires: 275/35 ZR20 102Y XL
Wheels rims
Front wheel rims: 9.5J x 20
Exterior
Interior
Safety and Security
Passenger
Passengers seats
4
Trunk space min liter | cu. Ft.
530 l
18.72 cu. ft.
Roof load load kg lbs
100 kg
220.46 lbs.
Dimensions
Overall length mm - inch
5001 mm
196.89 in.
Overall width mm -inch
1903 mm
74.92 in.
Overall height mm -inch
1468 mm
57.8 in.
Wheelbase mm - inch
2982 mm
117.4 in.
Track width front mm - inch
1625 mm
63.98 in.
Track width rear mm - inch
1594 mm
62.76 in.
Weights
Curb weight kg -lbs total
1825 kg
4023.44 lbs.
Gross weight kg -lbs total
2290 kg
5048.59 lbs.
Capacities kg - lbs
465 kg
1025.15 lbs.
Fuel tank liters | gallons
68 l
17.96 US gal | 14.96 UK gal
Fuel economy
Combined fuel consumption (WLTP)
10.9-11.3 l/100 km 21.58 - 20.82 US mpg
Engine type
8 CYLINDER V-Engine
It's an engine with eight cylinder piston where the cylinders share a common crankshaft and are arranged in a V configuration.
What is the 8 cylinder V-engine displacement: it is in a range between 2926 cc and 8135 cc in recent model line up powertrain.
How much is the power of the 8 cylinder V-engine: the power of the 8 cylinder V-engine is in a range from 125 bhp to 1160 bhp.
Which cars use 8 cylinder V-engine: in recent years several manufactures have been used the V8 engine for 3 main applications: premium, sport cars and lightweight trucks. 8 V engine is the American preferred engine for iconic giant pick-up.
What is the eight cylinder V angle: the majority of V8 engines use a V-angle of 90 degrees. This angle results in good engine balance and low vibrations. The downside is a larger powertrain body that makes the use of this configuration suitable only for longitudinal position and rear drive wheels traction.
V8 engines with a 60 degree V-angle were used in the 1996-1999 by Ford and in 2005-2011 by Volvo. The Ford engine used a 60 degree V-angle because it was based on a V6 engine with a 60 degree V-angle. Both the Ford and Volvo engines were used in transverse engine chassis, which were designed for a front-wheel-drive layout. To reduce the vibrations caused by the unbalanced 60 degree V-angle, Volvo's used a balance shaft and offset split crankpins.
The Rolls-Royce Meteorite tank engine also used a 60 degree V-angle, since it was derived from the 60 degree V12 Rolls-Royce Meteor which in turn was based on the famous Rolls-Royce Merlin V12 engine.
Most V8 engines fitted to road cars use a cross-plane crankshaft, since this configuration produces less vibration due to the perfect primary balance and secondary balance.
The rumbling exhaust sound produced by a typical cross-plane V8 engine is partly due to the uneven firing order within each of the two banks of four cylinders and with separate exhaust systems for each bank of cylinders, this uneven pulsing creates the legendary rumbling sound that is typically of V8 engines.
