Key specs

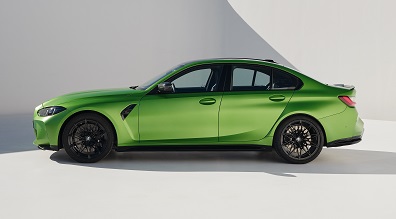

BMW M3 (Sedan) M3 (G80) 2020,2021,2022,2023,2024
What is the body type, BMW M3 (G80) 3.0 (480 Hp) 2020?
Sedan, 4 Doors, 5 Seats
How much power, BMW M3 (G80) 3.0 (480 Hp) 2020?
480 Hp @ 6250 rpm.
160.4 Hp/l
How fast is the car, BMW M3 (G80) 3.0 (480 Hp) 2020?
250 km/h, Electronically limited 155.34 mph
What is the engine size, BMW M3 (G80) 3.0 (480 Hp) 2020?
2993 cm3
182.64 cu. in.
How many cylinders, BMW M3 (G80) 3.0 (480 Hp) 2020?
6,
Inline
What is the drivetrain, BMW M3 (G80) 3.0 (480 Hp) 2020?
Rear wheel drive,
How long is this vehicle, BMW M3 (G80) 3.0 (480 Hp) 2020?
4794 mm
188.74 in.
How wide is the vehicle, BMW M3 (G80) 3.0 (480 Hp) 2020?
1903 mm
74.92 in.
What is the curb weight, BMW M3 (G80) 3.0 (480 Hp) 2020?
1705 kg
3758.88 lbs.
BMW M3 (Sedan) M3 (G80) 2020,2021,2022,2023,2024 Specs
General information
| Brand |
BMW |
| Model |
M3 (Sedan) |
| Version |
M3 (G80) |
| Engine version |
3.0 (480 Hp) |
| Year production start |
2020 |
| Vehicle type |
Sedan |
| Horsepower RPM |
480 Hp @ 6250 rpm. |
| Acceleration 0 - 100 kmh sec |
4.2 sec |
| Curb weight kg -lbs total |
1705 kg
3758.88 lbs.
|
| Overall length mm - inch |
4794 mm
188.74 in.
|
| Doors |
4 |
| Top Speed |
250 km/h, Electronically limited 155.34 mph |
Engine specs
| Cam configuration |
DOHC
|
| Engine position and orientation |
Front, Longitudinal |
| Cylinders |
6 |
| Position of cylinders |
Inline |
| Displacement (liters) |
2993 cm3
182.64 cu. in.
|
| Eng. horsepower RPM |
480 Hp @ 6250 rpm.
|
| Horsepower per litre |
160.4 Hp/l
|
| Weight / horsepower kg/hp - hp/tons |
3.6 kg/Hp
281.5 Hp/tonne
|
| Weight / torque kg/Nm - Nm/tons |
3.1 kg/Nm, 322.6 Nm/tonne
3.1 kg/Nm
322.6 Nm/tonne
|
| Torque Nm RPM lb-ft RPM |
550 Nm @ 2650-6130 rpm.
405.66 lb.-ft. @ 2650-6130 rpm.
|
| Bore (mm in) |
84 mm
3.31 in.
|
| Stroke (mm in) |
90 mm
3.54 in.
|
| Compression ratio |
9.3 |
| Fuel delivery system |
Direct injection |
| Fuel type |
Petrol (Gasoline) |
| Valvetrain |
4 |
| Engine aspiration |
Twin-power turbo, Intercooler |
| Engine oil liters | quarts |
7 l
7.4 US qt | 6.16 UK qt
|
| Emission certification |
Euro 6d
|
| Powertrain architecture |
Internal Combustion engine |
| Engine location |
Front, Longitudinal
|
Transmission and Drive system
| Drive configuration |
Rear wheel drive
|
| Transmission |
6 |
Brakes
| Front brakes |
Ventilated discs |
| Rear brakes |
Ventilated discs |
| Brake control |
Ventilated discs |
| Anti-lock brake system |
ABS (Anti-lock braking system) |
Steering
| Steering type |
Steering rack and pinion |
| Turning diameter m - ft |
12.2 m
40.03 ft.
|
Suspension
| Front suspension |
Coil spring, Double wishbone |
| Rear suspension |
Independent multi-link |
Wheels & Tyres
| Wheels size |
Front wheel tires: 275/40 ZR18 103Y XL
|
| Wheels rims |
Front wheel rims: 9.5J x 18 |
Passenger
| Passengers seats |
5 |
| Trunk space min liter | cu. Ft. |
480 l
16.95 cu. ft.
|
| Roof load load kg lbs |
75 kg
165.35 lbs.
|
Dimensions
| Overall length mm - inch |
4794 mm
188.74 in.
|
| Overall width mm -inch |
1903 mm
74.92 in.
|
| Overall height mm -inch |
1433 mm
56.42 in.
|
| Wheelbase mm - inch |
2857 mm
112.48 in.
|
| Track width front mm - inch |
1617 mm
63.66 in.
|
| Track width rear mm - inch |
1605 mm
63.19 in.
|
| Coefficient of drag |
0.33
|
Weights
| Curb weight kg -lbs total |
1705 kg
3758.88 lbs.
|
| Gross weight kg -lbs total |
2210 kg
4872.22 lbs.
|
| Capacities kg - lbs |
505 kg
1113.33 lbs.
|
| Fuel tank liters | gallons |
59 l
15.59 US gal | 12.98 UK gal
|
Fuel economy
| Urban (NEDC) l/100 km - Mpg |
15.6 l/100 km
15.08 US mpg
|
| Extra urban (NEDC) l/100 km - Mpg |
8 l/100 km
29.4 US mpg
|
| Combined (NEDC) l/100 km - Mpg |
10.8 l/100 km
21.78 US mpg
|
| Autonomy km (combined use) NEDC |
5900 |
| Combined fuel consumption (WLTP) |
10.3-10.6 l/100 km 22.84 - 22.19 US mpg |
Engine type
6 CYLINDER INLINE
